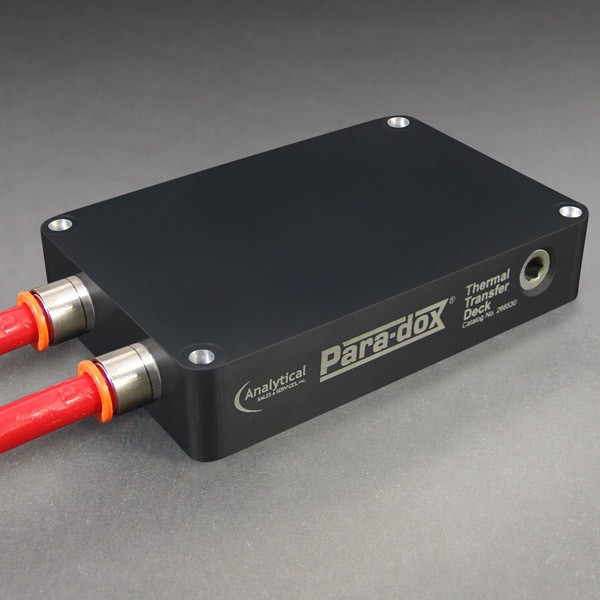

Thermal Transfer Decks

Our Thermal Transfer Decks can be used as either chilling plates or hot plates, or may be linked in novel ways to form gradients, or to serve other more experimental needs.  Input and Output ports are user configurable, and may be relocated between side and top faces. Units are shipped with side exit ports as standard. Decks are stackable, and multiple decks can be chained together for a total temperature control solution. Compatible with a wide variety of coolants (water, propylene glycol, ethylene glycol, etc.). Equipped with push-to-connect fittings (standard) for quick tubing insertion/removal, or high-end valved fittings (TTD+) for easy, spill-proof tubing connection/disconnection.

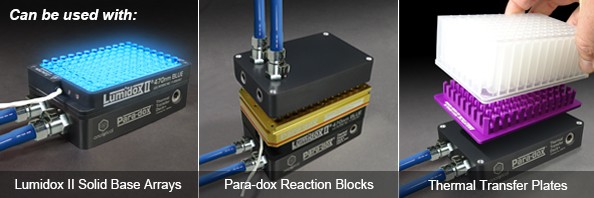

Note: When using with Lumidox II solid base arrays, we highly recommend that you allow Analytical Sales & Services, Inc. to attach your thermal transfer deck to your array before shipping.


    Click image thumbnail or SKU below for specific product details
    ImageSKUDescriptionUnitsPriceQty / Add to Cart
    SLAS Thermal Transfer Deck +
    266540TTD+ (Thermal Transfer Deck with High-end Fittings)Each$325.00
    Thermal Transfer Deck
    266530TTD (Thermal Transfer Deck with Standard Fittings)Each$250.00
    Daisy-Chain Connector for TTD+ and Flow Reactor
    266701Daisy-Chain Connector for TTD+ and Flow ReactorEach$131.00
    "Straight-Thru" Thermal Transfer Deck
    266550"Straight-Thru" Thermal Transfer DeckEach$551.00
    Daisy Chain Connector for TCR and "Straight-Thru" TTD
    266703Daisy Chain Connector for TCR and "Straight-Thru" TTDEach$120.00
    Daisy Chain Connector for Flow-Through LED array to TCR or Straight-Thru TTD
    266704Daisy Chain Connector for Flow-Through LED array to TCR or Straight-Thru TTDEach$129.00
    Daisy Chain Connector for Flow-Through LED array to TTD+ or Flow Reactor
    266705Daisy Chain Connector for Flow-Through LED array to TTD+ or Flow ReactorEach$134.00
    Daisy Chain Connector for TCR or Straight-Thru TTD to TTD+ or Flow Reactor
    266706Daisy Chain Connector for TCR or Straight-Thru TTD to TTD+ or Flow ReactorEach$125.00
    Daisy Chain/Tubing Union
    266707Daisy Chain/Tubing UnionEach$138.00
    Minichiller 280 Ole Recirculating Chiller
    MC280OLEMinichiller 280 Ole Recirculating ChillerEach$6,488.00
    TCube Edge Chiller
    TCubeEdgeTCube Edge ChillerEach$4,230.00
