Sample Filtration

Vacuum Manifolds for SPE, Elution and Filtration Columns

The manifold consists of a clear glass cabinet and top to which vacuum is applied. The top is fitted with 12, 16, or 24 female luer connectors in series with a similar number of stopcock valves. These luer connectors enable the manifolds to work with any male luer-hub sample prep device.

Opening the stopcock valve under a clean-up device causes sample or solvent to be drawn through the device and into the cabinet where it can be collected by test tubes, autosampler vial, volumetric flasks, etc. The eluent is deposited directly into the collection vessel via polypropylene needles or optional stainless steel needles. The attached vacuum bleed valve and gauge allows the amount of vacuum to be controlled and monitored.

The 16 Position Manifold was designed specifically for use with the robot compatible columns.

10 Position Vacuum Manifold - Complete System

12 Position Vacuum Manifold - Complete System

16 Position Vacuum Manifold - Complete System

24 Position Vacuum Manifold - Complete System

Rplc. Parts for 10-Position Vacuum Manifold

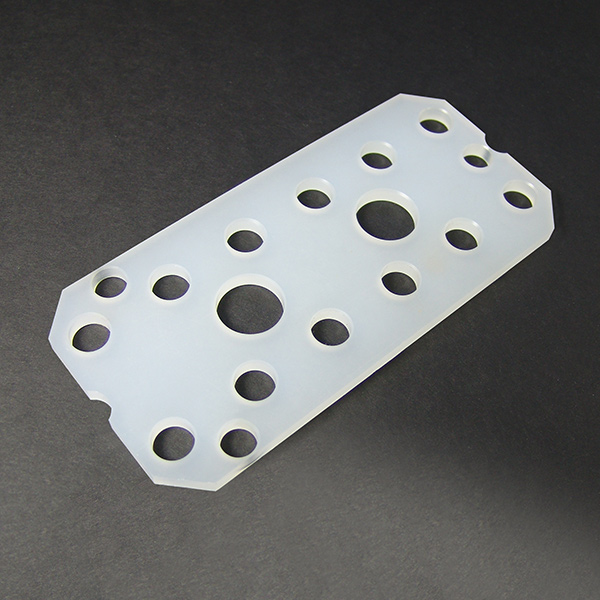

Rplc. Parts for 12-Position Vacuum Manifold

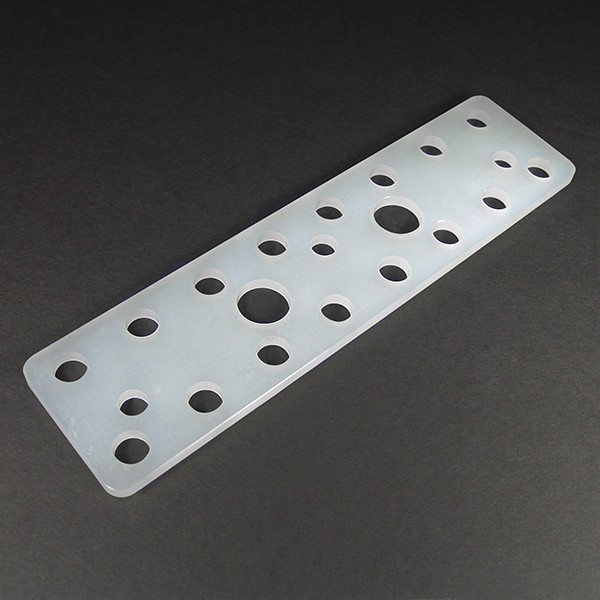

Rplc. Parts for 16-Position Vacuum Manifold

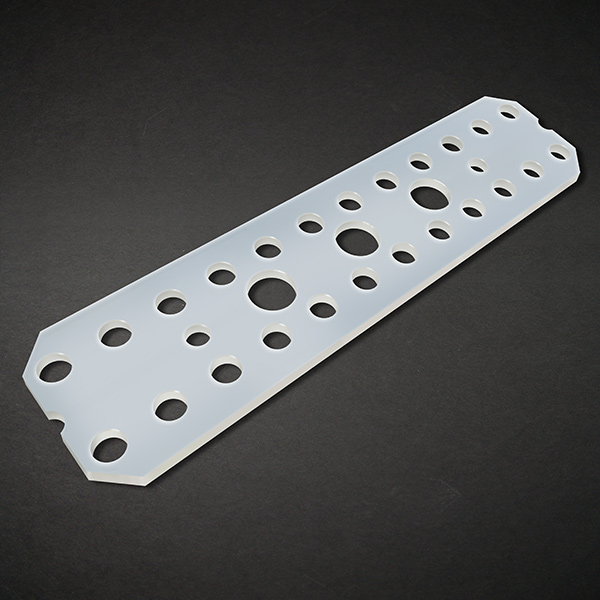

Rplc. Parts for 24-Position Vacuum Manifold

Rplc. Parts for All Vacuum Manifolds
