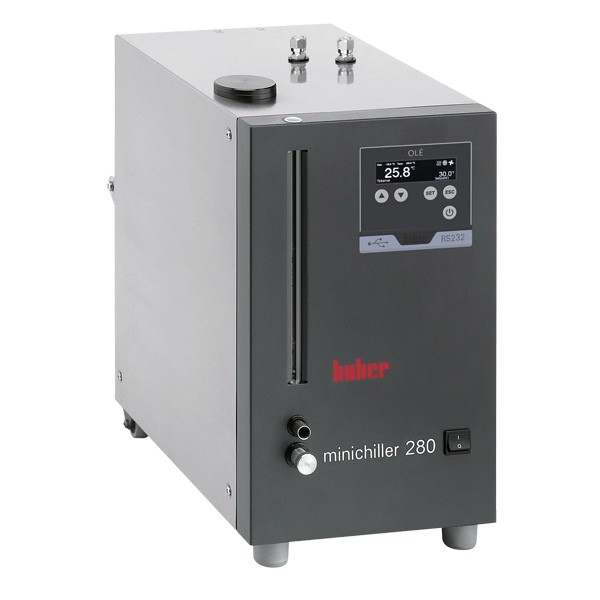

Minichiller 280 Ole Recirculating Chiller


Units/Pkg: Each


Minichiller 280 Ole Recirculating Chiller
with Custom Fitting and Tubing Adapter Kit (266708)

Chiller with air-cooled refrigerating unit and circulation pump. Evaporator (cooler), tank and housing of stainless steel. Pressure-suction pump made of industrial plastic material. Digital Temperature adjustment and digital temperature display. Level indicator with sight glass.

NEW: OLÉ controller:
OLÉ combines state-of-the-art technology with simple operation. Models with OLÉ controller are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment:
* Large, bright OLED display
* Simple operation with menu navigation
* Simultaneous display of set point, internal temperature, Tmin and Tmax
* USB (Device) and RS232 interfaces
* Autostart function for power failure

Technical data

Operating temperature range:  -5…40 °C
Temperature set point / display: digital
Internal temperature sensor: NTC
Resolution of display: 0,1 K
Interface digital: USB (Device), RS232 interfaces
Alarm message: optic, acoustic
Temperature stability at 0°C: 1 K
Safety classification: I / NFL
Cooling power at 15°C:  0,28 kW
Cooling power at 0°C: 0,2 kW
Refrigeration machine: air-cooled, natural refrigerant
Refrigerant (ASHRAE, GHS): R290 (A3, H220)
Refrigerant quantity: 0,041 kg
Gas warning sensor: without
Circulation pump: Pressure- and suction pump
Max. delivery: 14 l/min
Max. delivery pressure: 0,25 bar
Max. delivery (suction): 10,5 l/min
Max. delivery pressure (suction): 0,17 bar
Pump connection: M16x1 male
Min. filling capacity: 1,4 l
Expansion tank: 2 l
Overall dimensions WxDxH **: 225 x 360 x 380 mm
Net weight: 23 kg (50.7 lbs.)
Sound pressure level +/- 4 dB(A): 49 dB(A)
Power supply requirement: 110-120V 1~ 60Hz
Max. current: 4 A
Min. Fuse: 10A
Max. Fuse: 16A
Degree of Protection: IP20
Min. ambient temperature: 5 °C
Max. ambient temperature: 40 °C


Custom Fitting and Tubing Adapter Kit (266708)

This adapter kit is required for operation with Thermal Transfer Decks (TTD),  Temperature Controlled Reactor (TCR), Flow Reactor and Flow-through base Lumidox® LED Arrays from Analytical.





Technical Data Sheet
Download: Mini Chiller 280 Ole Data Sheet.PDF
