Reactors and Accessories

Flow Reactor

$860.00

Units/Pkg: Each

SKU: 266100
Questions and Requests

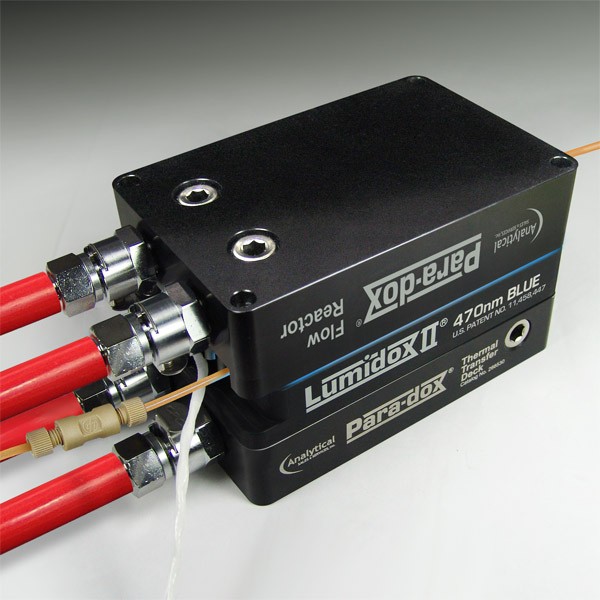

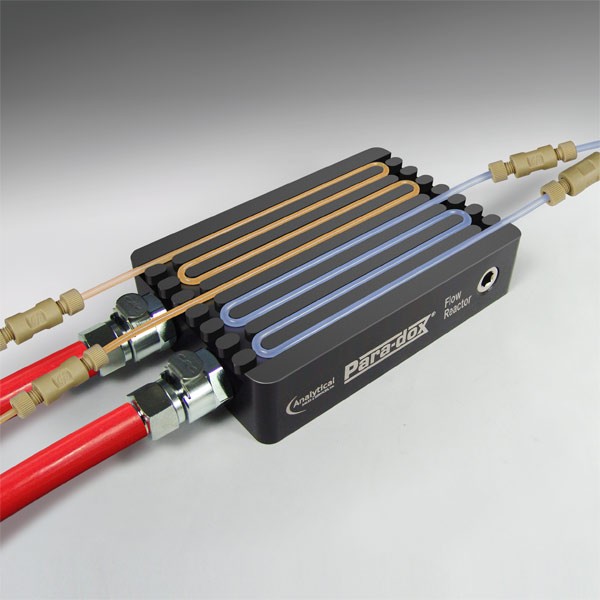

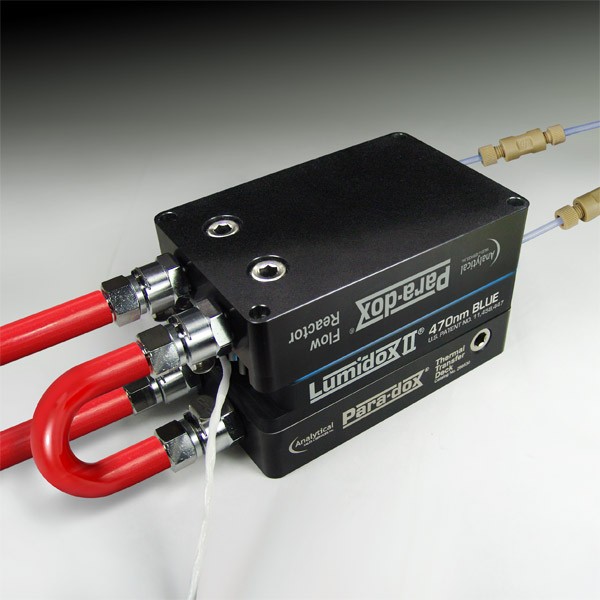

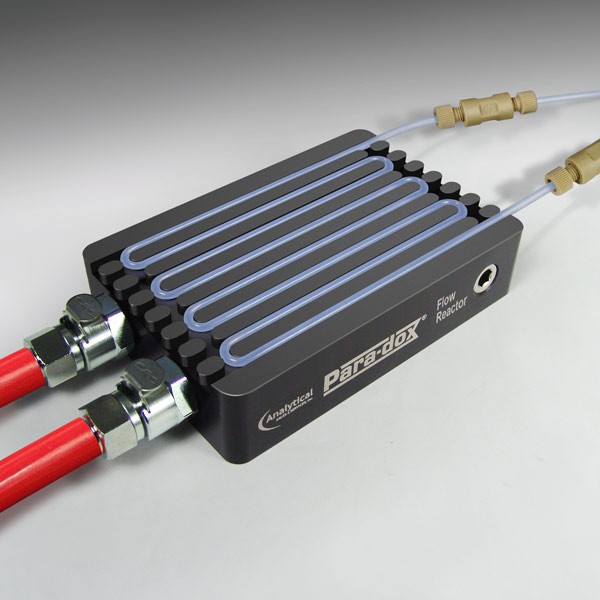

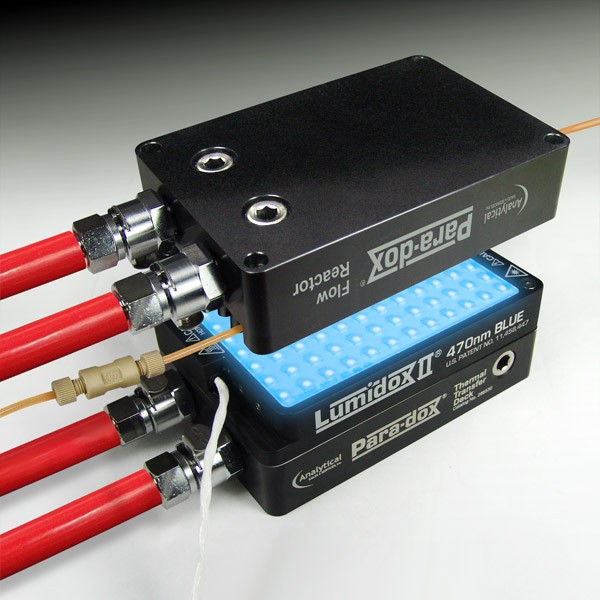

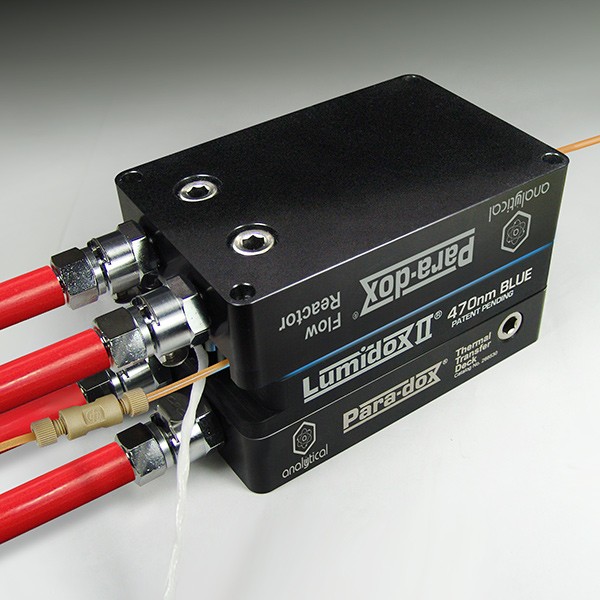

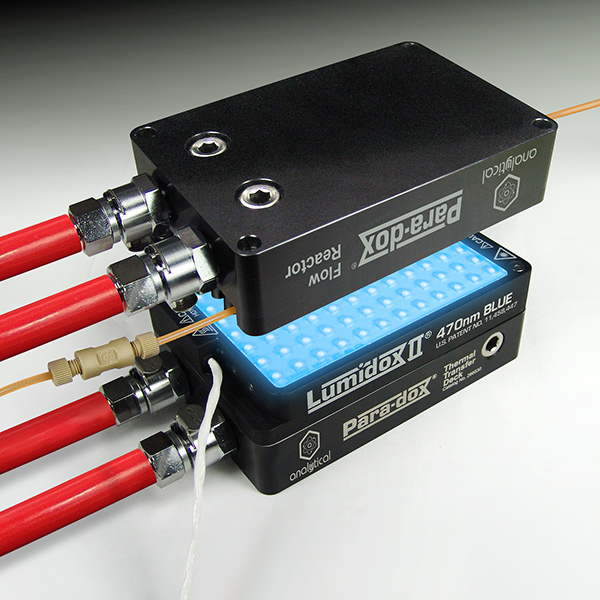

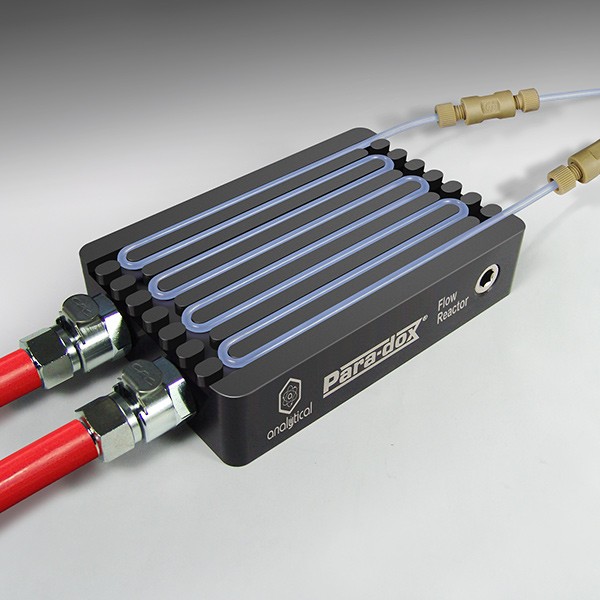

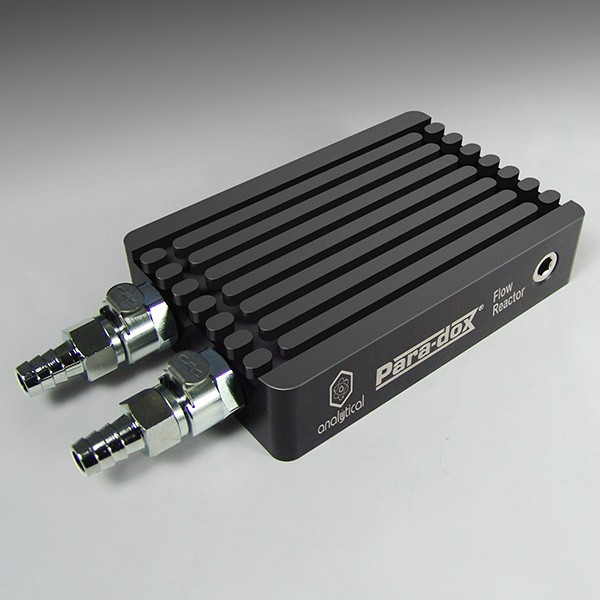

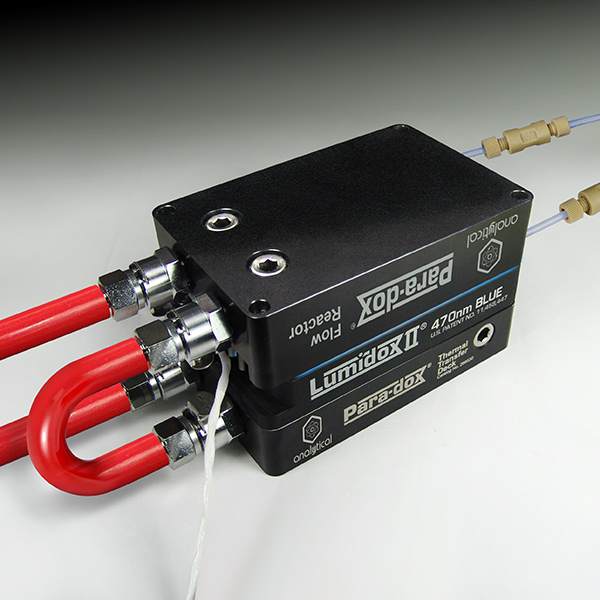

The Para-Dox® Flow Reactor is a highly configurable, liquid cooled or heated flow reactor for the Analytical Sales & Services Lumidox®II platform. The new Para-Dox® Flow Reactor sits directly on top of any solid base, diffuse mat Lumidox®II array.  Pair with a solid base, diffuse mat array, and a Thermal Transfer Deck for a complete flow solution. Users may reconfigure the Flow Reactor in various different ways, including multiple input streams using the machined channels. Tubing may be changed by the user with the insertion tool that’s provided with each reactor.

• SLAS/SBS footprint

• Dripless CPC fittings

• 1/8″ OD unions for ease of analyte injection

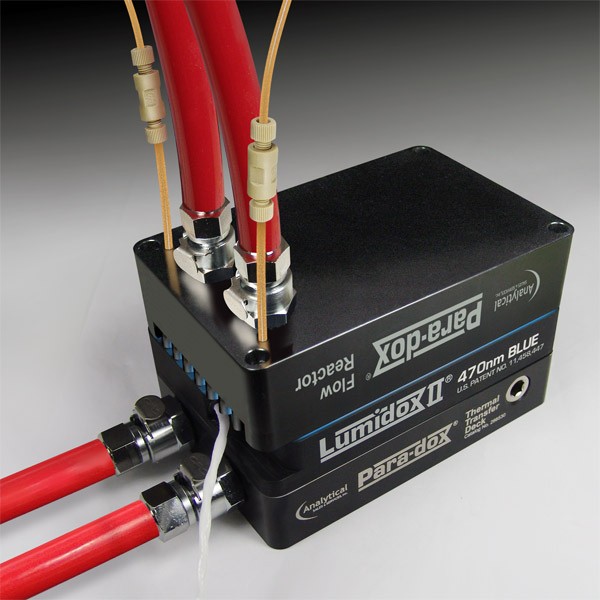

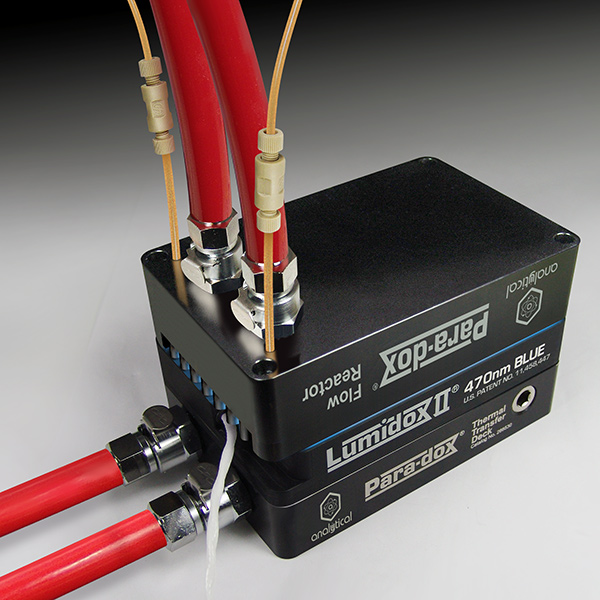

• User-Configurable output/input locations. Side or Top (Factory set to side).

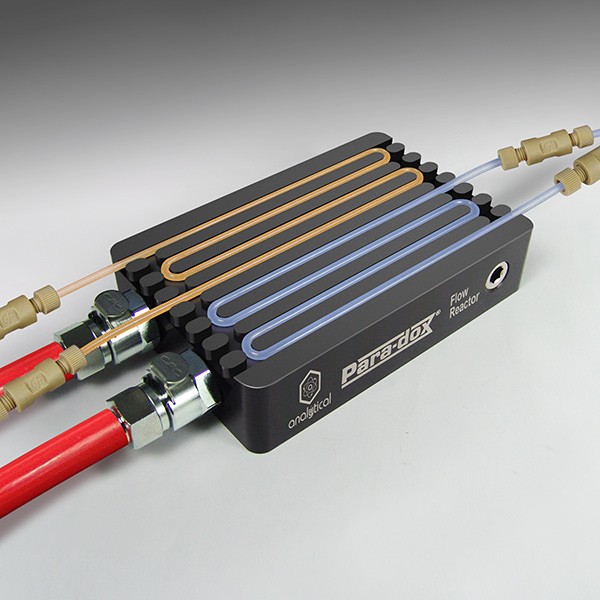

• Exposure volume of 2mL using 1/8″ OD, 1/16” ID tubing. The exposure volume may be set to 1mL if two streams are used.

• FEP Tubing Provided

• Crowned design reduces light bleed

• Compatible with water, glycol based coolants, and silicone based coolants



Weight: 908g

Units:

Each

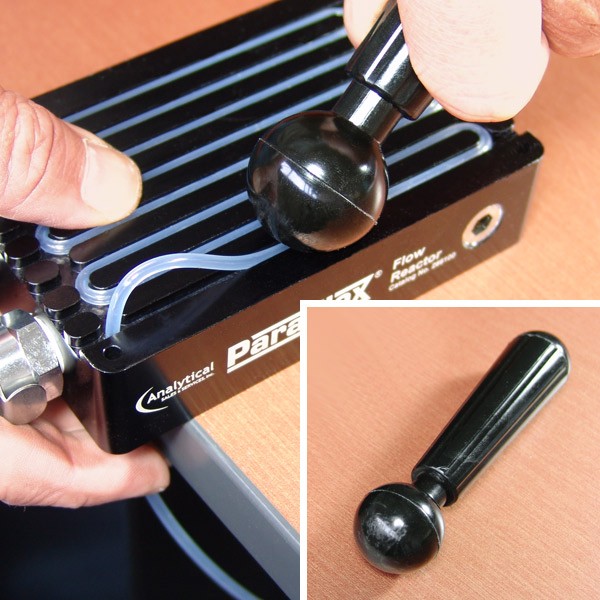

Tubing Insertion Instructions
Download: Flow_Reactor_Tubing_Instructions_rev1b.pdf
