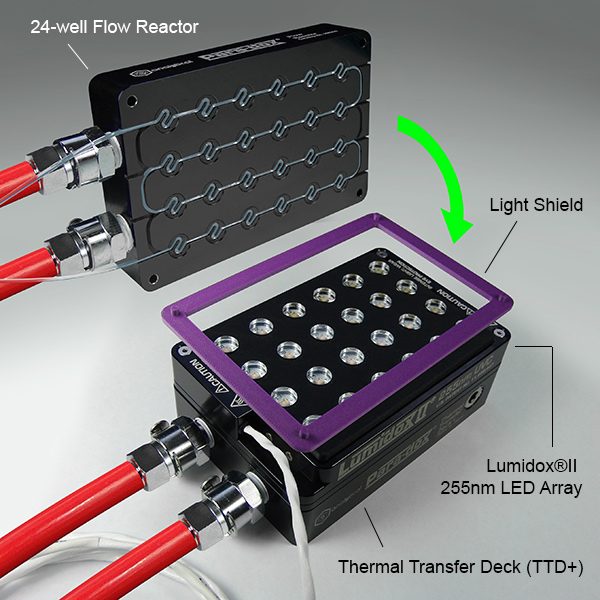

The NEW Para-Dox® 24-well Flow Reactor is a highly configurable liquid cooled or heated flow reactor for the Analytical Sales and Services Lumidox® II platform. It mates directly with any 24-LED (18mm spacing) Lumidox® II array. Pair with a solid base array and a Thermal Transfer Deck for a complete flow solution. Users may reconfigure the Flow Reactor in various different ways, including multiple input streams using the machined channels. Tubing may be changed by the user to fit experimental needs.
• SLAS/SBS footprint
• Dripless CPC fittings
• 1/16″ OD unions for ease of analyte injection

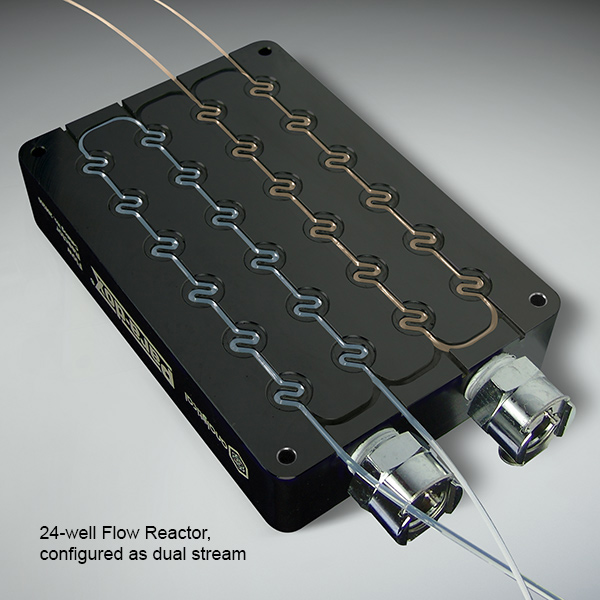

• User-Configurable output/input locations. Machined channels allow high degree of customization
• FEP Tubing Provided
• Exposure (active surface) volume of 100uL using 1/16″ OD, .020” ID tubing. Tubing with .010″ (25uL exposed volume) and .030″ (230uL exposed volume) ID also available.

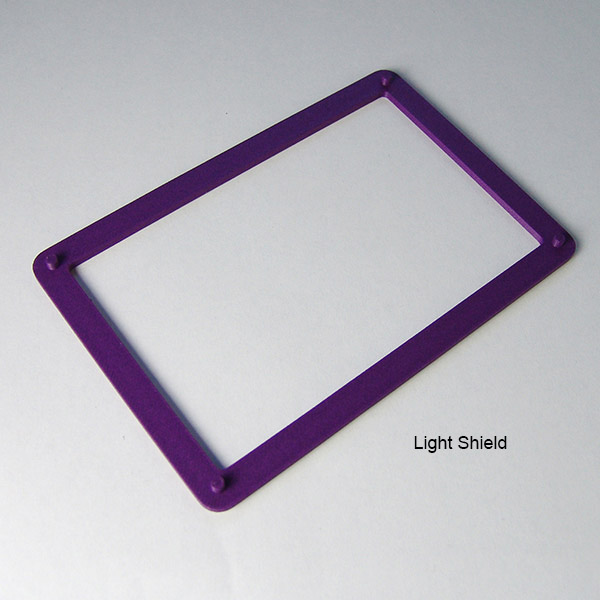

• The included light shield reduces light bleed
• Can be used with a 255nm Lumidox array
• Compatible with water, glycol based coolants, and silicone based coolants
Weight: 908g
