1mL OWiC SPECS Vials

1mL (8 x 30mm) Glass Vials with pre-installed OWiC SPECS
When used with a 96-position Para-dox® Reactor and Lumidox® LED array, production rates > 3 umol/hr/insert are possible.

SPECS are held in place with a press-fit holder (patent pending) to center them, suspend it above the bottom surface of the vial, and protect them from stir bars. The holder is made from chemically resistant polypropylene with no adhesives.

1mL SPECS Vials are delivered in 96-position racks for easy loading into Para-dox® Reactors. Loading time is literally 5 seconds.

SPECS size: 2mm x 2mm x 0.5mm
Electrodes: Platinum
Holder: 3D printed polypropylene
Current: 20µA per sun of illumination
(1 sun = 1mW/sq mm)
Maximum output voltage: 8 V
Mixing: Compatible with stir bars, orbital shakers, etc.
Usage: Intended for single use for maximum reliability


    Click image thumbnail or SKU below for specific product details
    ImageSKUDescriptionUnitsPriceQty / Add to Cart
    1mL OWiC SPECS Vials
    SPEC961mL OWiC SPECS VialsEach$576.00
    Related Products:
    ImageSKUDescriptionPriceQty / Add to Cart
    Standard 96-Position Photoredox Reaction Block, Gen II
    101960Standard 96-Position Photoredox Reaction Block, Gen II$879.00
    Lumidox® II 96-Well LED Arrays
    Lumidox® II 96-Well LED Arrays$983.00$2,121.00
    Select options This product has multiple variants. The options may be chosen on the product page

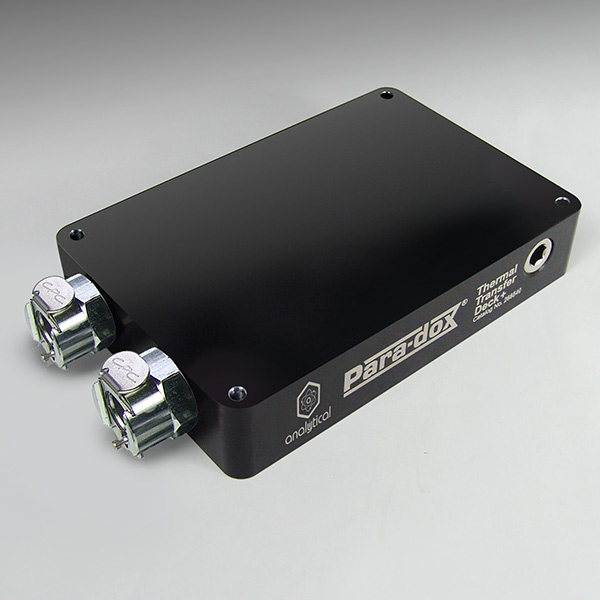

    SLAS Thermal Transfer Deck +
