Column Temperature Control

Multicon Gen II Multiple Column Heater Sleeve Controller


Now taking orders – please allow approximately 6-8 week lead time

Units/Pkg: Each


Multicon Gen II Multiple Column Heater Sleeve Controller

The MULTICON is the latest multiple column heater controller from Analytical. It is the next generation of the original MultiSleeve, and controls Analytical’s new Gen II HotSleeve+ column heaters. Significant new features include:

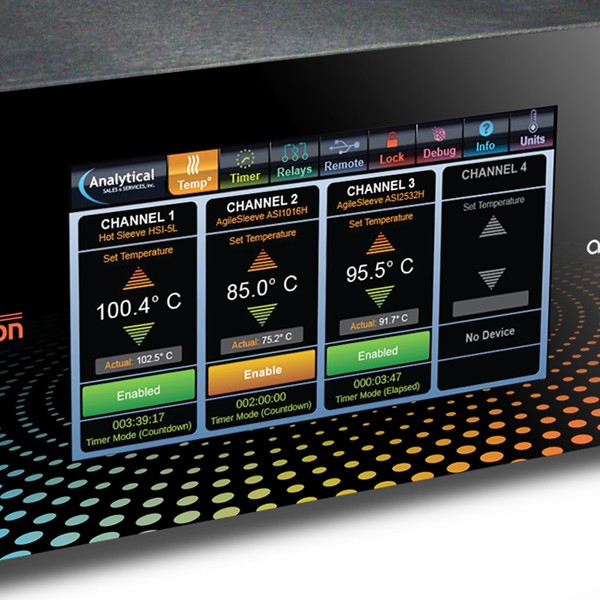

Touchscreen Interface
• Provides simple and intuitive interaction with the device
• Provides greater utility to operators by allowing for gloved operation
• Tabbed, modern and familiar

Continuous Display of Critical Performance Data, Including:
• Current temperature
• Set point temperature
• Elapsed time or time remaining until automated cutoff
• Activation status of heating unit
• Specifications and parameters of active heaters

High Power Operation
• Support for heaters with a temperature range of 30°C – 200°C
• Faster heater to-temperature time allowing for decreased downtime
• Supports 250 W  heaters allowing for increased performance and higher capacity operation
• Supports Peltier coolers

Screen Lock
• Prevents accidental touches from changing settings

Stacking Enclosures
• Preserves space by allowing multiple devices to share the same 16.5” x 11” vertical footprint

1000 Hour Maximum Timer Limit
• Provides users with the time that they need to collect all necessary data

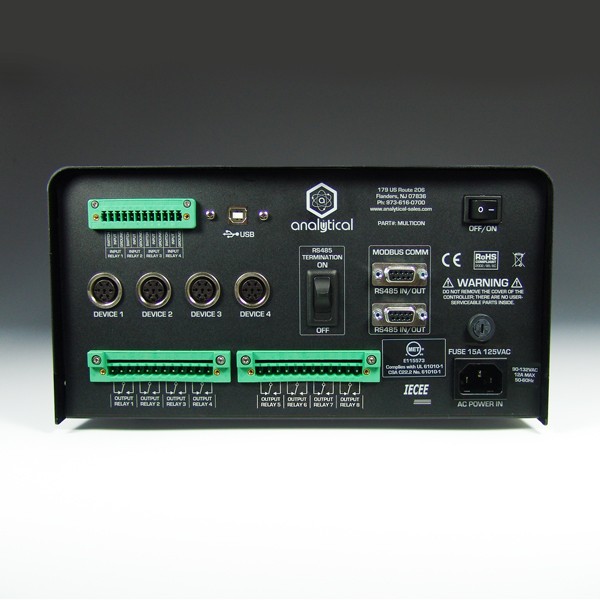

USB Connectivity
• For PC connection

Modbus RS485
• Allows the controller to be connected as part of a Modbus RS485 chain. This allows up to 31 controllers to be used simultaneously.
• A list of Modbus serial commands is available

Includes: MULTICON Controller, Power Supply, USB Cable, GUI, and Manual. Heaters not included.



Download Manual
Download: multicon_manual_rev2g.pdf

Related Products:
Click image thumbnail or SKU below for specific product details
ImageSKUDescriptionUnitsPriceQty / Add to Cart
Gen II HotSleeve+ 10cm Column Heater
HS2-10LGen II HotSleeve+ 10cm Column HeaterEach$920.00

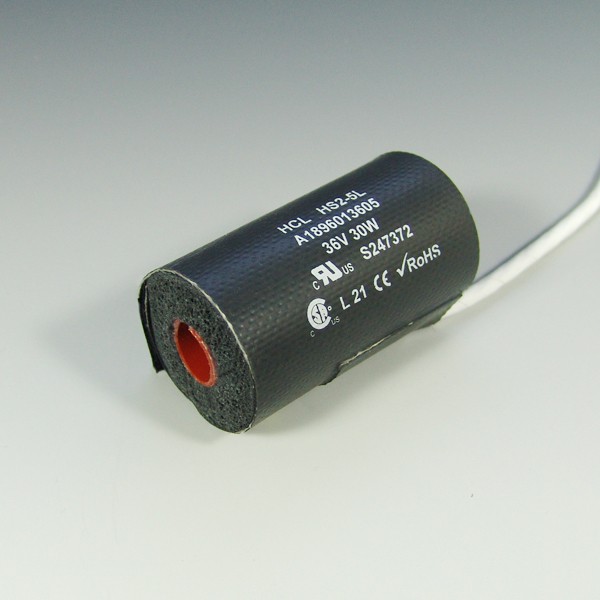

Gen II HotSleeve+ 5cm Column Heater
