Photoredox Catalysis & Parallel Synthesis

Lumidox®II 48-Position LED Arrays for TCR

$852.00$1,418.00

Units/Pkg: Each

SKU: N/A

Lumidox® II 48-position LED Array for TCR

• Made specifically for use with a Temperature Controlled Reactor (TCR)
Lens Mat surface with 9mm spacing between LED position centers

Available wavelengths (select option above):
UV365, UV375, UV385, UV395, UV405, 445-Indigo,  470-Blue,  505-Cyan,  527-Green,  590-Amber,  630-Red, White

Available Base configurations (select option above):

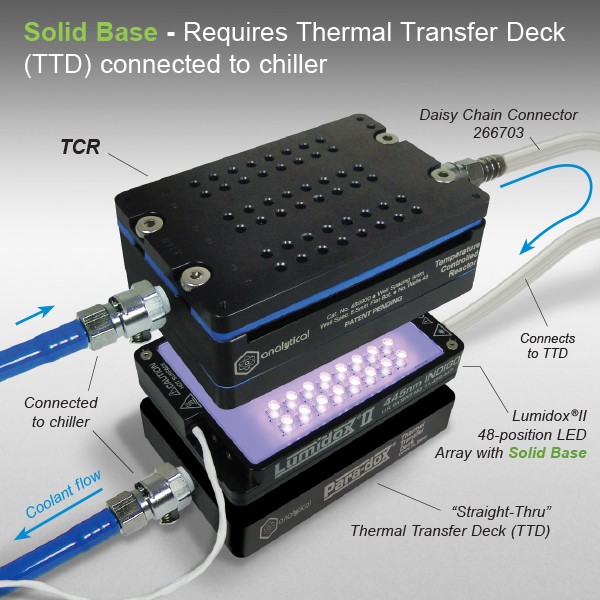

• Solid Base*

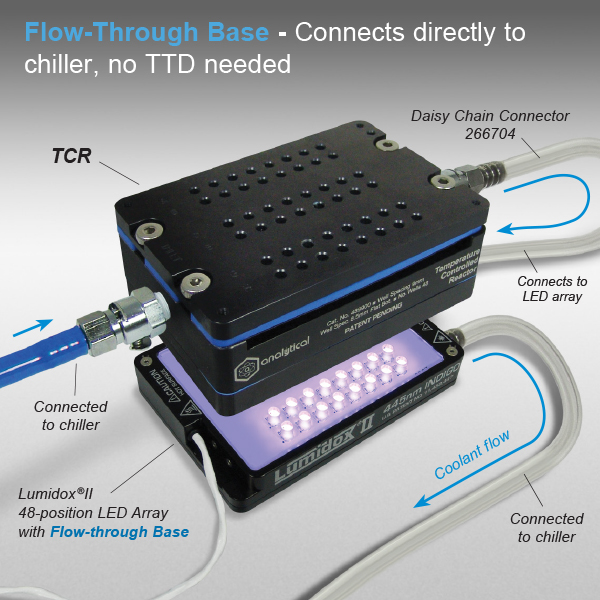

• Flow-Through Base (coming soon)*

Solid and Flow-through base arrays are NOT self-cooling and require the use of a sufficient chiller/cooling device.

Average weight of arrays:
Solid base: 520g
Flow-through base: 551.8g

Cord length: 150cm (59.05″)


Need help deciding which options are right for you? See our LED Array Comparison Guide for more information.

Units:

Each



Manual
Download: Lumidox-II-Manual_rev1h.pdf



Articles & Publications




LED Array Guide
Need help deciding which options are right for you? See our LED Array Comparison Guide for more information.

Related Products:
Click image thumbnail or SKU below for specific product details
ImageSKUDescriptionUnitsPriceQty / Add to Cart
TCR Unit
48990048 Well Temperature Controlled ReactorEach$1,923.00
"Straight-Thru" Thermal Transfer Deck
266550"Straight-Thru" Thermal Transfer DeckEach$520.00
