6mm Thick, Extra-Wide Well Stainless Steel Plate (96 Holes) with 0.3mil Kapton Liner

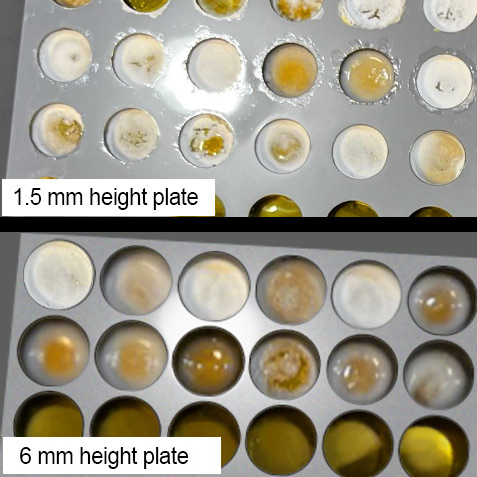

This plate is twice as thick as our 96398 plate, and 4x as thick as our standard 1.5mm Kapton plate. For slurry sampling applications requiring even greater volume, the added thickness and extra-wide wells are crucial in containment of the slurry samples to prevent splashout from the well.
• SS plate thickness: 6mm
• Liner thickness: 0.3mil
• Well diameter: 8.00mm
• Well volume: 300 uL/ea
• SLAS/SBS footprint (1.5 and 3mm plates are slightly smaller)
• Used to collect Powder X-Ray Diffraction data on polymorph screening samples
• Designed for both transmission and/or reflection instruments
Qty/Pkg: Each
