1 DRAM, 24-Position High Temperature Ceramic Reaction Block
• for 16x35mm, 4mL (1 Dram) QUARTZ Vials
• 18mm Spacing
Workflows/Usage
- Designed for high-temperature applications
- Enables batch pyrolysis & calcination workflows
- For use with crucible ovens / furnaces
-
- Rated to a maximum of 700°C (1292°F) for 2.5 hours
- Resistant to thermal shock during heating ramp rates (from room temp to 700°C) of between 1-10°C/min
- Able to cool down naturally in a closed furnace (no quenching) from 700°C to room temp without cracking due to thermal shock.
Features
- Made from thermally conductive ceramic
- Automation compatible: groove for gripper around entire perimeter
- Thermocouple hole for temperature sensing
- A1 engraving (on top and bottom) for orientation
- When used as an assembly, quartz vials (sold separately) provide alignment between base and lid, eliminating the need for costly threads, screws, alignment pins, etc.
Consumables

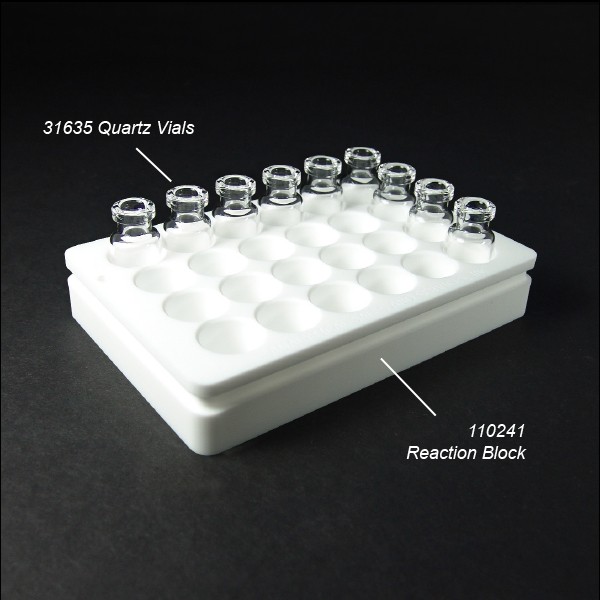

- 16x35mm, 4mL (1 Dram) QUARTZ vials ONLY (part# 31635)

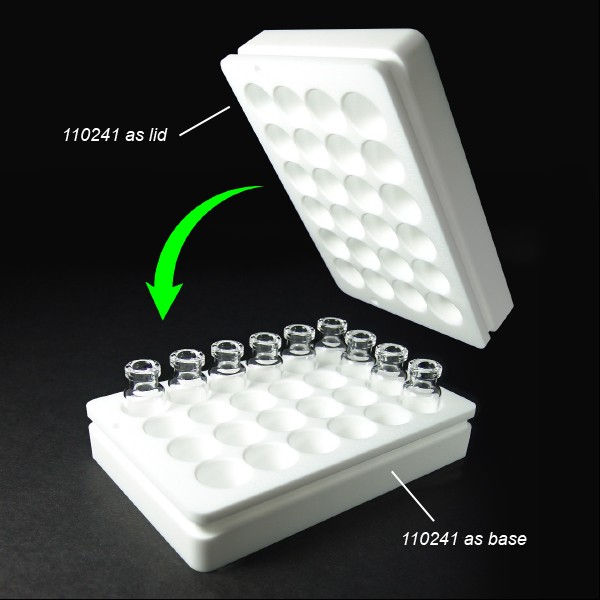

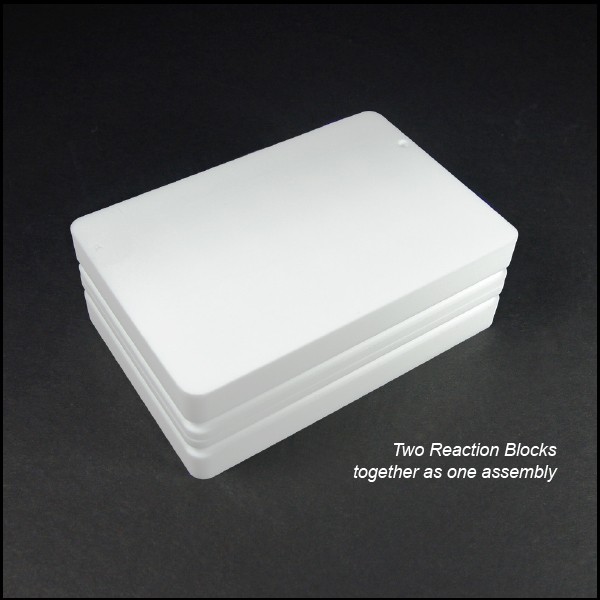

Blocks are sold individually. Use two blocks for a full assembly. The block is interchangeable and can be used as either a base or a lid. The full assembly keeps vials free from debris and can help with thermal conformity. The quartz vials provide alignment between the base and the lid so no additional hardware is required.
