Reactors and Accessories

Lumidox® II LED Arrays

U.S. Patent No. 11,458,447
Lumidox Array on TTD

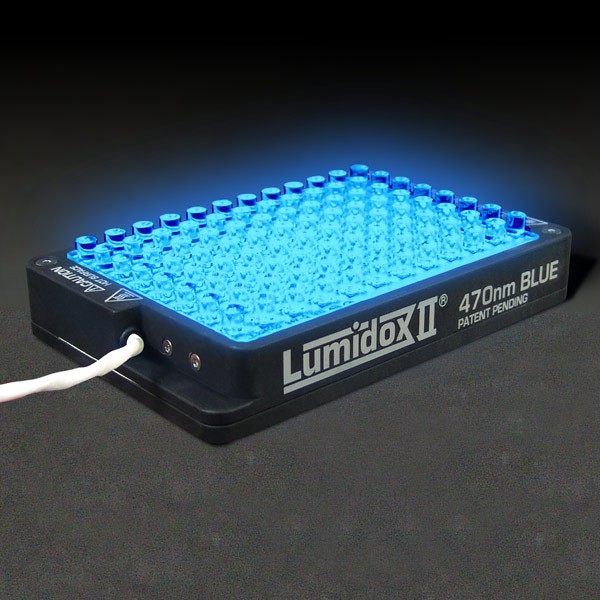

Analytical’s patented LED arrays provide wavelength and power specific illumination to samples for photoredox catalysis applications.
  • Up to 15 different color wavelengths are available*
  • 5 output STAGES (customizeable) with calibration data stored on board**
  • Available in two Surface Mat styles
  • Three options for Base configurations
    (see the expandable section below: "Learn more about LED Arrays")
Lumidox II LED Arrays are available in up to 15 wavelengths*:
365nm UV, 375nm UV, 385nm UV, 395nm UV, 405nm UV, 420nm-Violet, 445nm-Indigo, 470nm-Blue, 505nm-Cyan, 527nm-Green, 590nm-Amber, 630nm-Red, 660nm-Deep Red, 730nm-IR Infrared and White. Note: LUM2CON controller is required to power LED arrays.
Lens Mat Active with Patent Colors
* Most LED arrays (excluding Discovery) are wavelength-specific - only one wavelength per device
** Calibration data is stored onboard (not on the controller), allowing the use of different illuminators with one controller. Controller can only operate 1 device at a time. STAGE settings are NOT user-adjustable and must be configured prior to shipping

Learn more about LED Arrays - Expand

Surface Mat Styles
Array top surfaces come in two styles, Lens Mat and Diffuse Mat.
Lens Mat Solid Side
Lens Mat Surface
  • Ultra-clear, molded to fit into the holes of a Para-dox® Reaction Block
  • Captures nearly all light emitted by the array’s LEDs and directs it into the vials in the reaction block
  • Chemically inert silicone
Diffuse Mat Solid Side
Diffuse Mat Surface
  • Flat surface, making for easy pairing with SLAS footprint apparatus
  • Can be used for niche applications such as illuminating cell culture flasks, reservoir plates, large scale containers, etc.
  • Chemically inert silicone
Diffuse Mat and Vials



About Array Cooling and Base Options
Lumidox® II LED Arrays can generate a considerable amount of heat at any output stage and therefore need to be cooled. Both Lens Mat and Diffuse Mat style arrays are available with an Active Cooling base, Solid base or Flow-Through base. Each has it’s own specific way of cooling the LEDs in the array and can affect different application situations.

Active Base
Active Cooling Base:
  • Self-cooling, no external cooling source required
  • Fully conforms to SLAS/ANSI standard dimensions

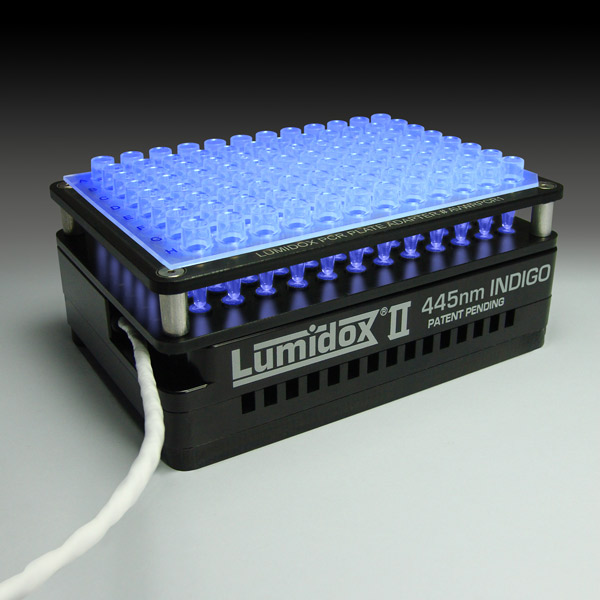

  • Ideal for lower output applications like cell culture and PCR work (may require special adapter)
  • Not compatible with tumble stirrers or devices that generate powerful magnetic fields

Solid Base
Solid Base:
  • External cooling source is required (see Thermal Transfer Deck)
  • A Thermal Transfer Deck (TTD) is recommended and can be attached to the base when used in conjunction with a recirculating chiller. The TTD can be removed if using a different cooling source, such as a cooling bay
  • Fully conforms to SLAS/ANSI standards and can be used with cooling baths, plates, or other cooling chamber (if NOT being used with our Thermal Transfer Deck and recirculating liquid chiller)
  • Ideal for applications requiring high output - up to nearly 3x more radiometric power output than Active Base arrays

Flow Thru Base
NEW! Flow-Through Base:
  • Provides the most optimal cooling efficiency for LED arrays
  • Direct connection to recirculating liquid chiller (required). Cooled liquid flows through the array base itself (no need for Thermal Transfer Deck)
  • Ideal for applications requiring high output - up to nearly 3x more radiometric power output than Active Base arrays
  • Light Weight – improved usability with orbital shakers due to lower overall mass
  • Shorter overall height than active base array – offers improved compatibility with tumble stirrers (less distance between stirrer and sample)

3 Bases
Note: All LED arrays can operate in an incubator at 37ºC, 95% humidity

For added protection, each device has a built-in thermal cutoff switch that, in case of overheating, will automatically shut down the unit. The trip temperature for Solid Base and Flow-thru Base Arrays is 95°C, and will reset when cooled to 65°C. Active Cooling Base Arrays will shut down if their temperature exceeds 75°C. They will reset once they have cooled to 45°C.

Note: Active Cooling Base arrays are not compatible with strong magnetic fields such as those found in most tumble stirrers due to interference with the cooling fans.




Lumidox II Stages Lumidox® II STAGES
By default, all Lumidox II devices are factory calibrated with 5 discrete linearly stepped output STAGES... Expand

Lumidox® II STAGE Selection
By default, all Lumidox II devices are factory calibrated with 5 discrete linearly stepped output STAGES (Example 1, below). STAGE 1 output is the least radiometric power while STAGE 5 output is the most. For LED arrays with Active Cooling Stage bases, STAGE 5 thermal dissipation requirements are configured to an appropriate level for each device's built-in thermal satisfaction abilities. STAGE 5 defaults for Passive (solid) Base Arrays are tuned to be thermally satisfied with an average powered chiller in thermal contact with the array base. STAGES are calibrated to nearest whole number of radiant flux, and displayed in milliwatts (mW).

Analytical Sales & Services offers custom tuned stages to meet specific and unique requirements. A user, for example, may have a more sophisticated cooling mechanism and require an array tuned for maximum light output. In this scenario, Analytical would tune the upper STAGES to higher levels than typically thermally controllable by standard users (Example 2). In another example, a user may have a need for a tighter resolution of STAGES (Example 3).

Lumidox II Stages 600

For custom STAGE settings, please contact Analytical Sales & Services before ordering. Note: STAGES may only be calibrated at the time of shipment.


96-Well LED Arrays with Lens Mat and Active Cooling Base

Radiant Flux Values per STAGE | Irradiance Values per STAGE
Example (typical values*)
Stage 1 Radiant Flux Stage 2 Radiant Flux Stage 3 Radiant Flux Stage 4 Radiant Flux Stage 5 Radiant Flux
Catalog No. Wavelength Per well (mW) Total (W) Per well (mW) Total (W) Per well (mW) Total (W) Per well (mW) Total (W) Per well (mW) Total (W)
LUM296LA365 UV365 25 2.4 55 5.3 80 7.7 105 10.1 135 13.0
LUM296LA375 UV375 25 2.4 50 4.8 75 7.2 110 10.6 140 13.4
LUM296LA385 UV385 30 2.9 65 6.2 100 9.6 145 13.9 165 15.8
LUM296LA395 UV395 30 2.9 65 6.2 105 10.1 140 13.4 170 16.3
LUM296LA405 UV405 25 2.4 60 5.8 90 8.6 125 12 160 15.4
LUM296LA420 420-Violet 30 2.9 60 5.8 90 8.6 120 11.5 150 14.4
LUM296LA445 445-Indigo 50 4.8 100 9.6 150 14.4 195 18.7 240 23.0
LUM296LA470 470-Blue 45 4.3 95 9.1 140 13.4 180 17.3 220 21.1
LUM296LA505 505-Cyan 35 3.4 65 6.2 90 8.6 115 11.0 135 13.0
LUM296LA527 527-Green 25 2.4 55 5.3 80 7.7 100 9.6 110 10.6
LUM296LA590 590-Amber 40 3.8 75 7.2 115 11.0 150 14.4 180 17.3
LUM296LA630 630-Red 30 2.9 55 5.3 85 8.2 115 11.0 145 13.9
LUM296LA660 660-Deep Red 40 3.8 70 6.7 105 10.1 140 13.4 170 16.3
LUM296LA730 IR730 35 3.4 65 6.2 95 9.1 125 12.0 155 14.9
LUM296LAWHT White 50 4.8 100 9.6 150 14.4 200 19.2 300 28.8


96-Well LED Arrays with Lens Mat and Active Cooling Base

Radiant Flux Values per STAGE | Irradiance Values per STAGE
Example (typical values*)
Irradiance at Surface of Each Lens Mat Tip
Stage 1 Stage 2 Stage 3 Stage 4 Stage 5
Catalog No. Wavelength (mW/cm2) (mW/cm2) (mW/cm2) (mW/cm2) (mW/cm2)
LUM296LA365 UV365 125 280 405 535 690
LUM296LA375 UV375 125 255 380 560 715
LUM296LA385 UV385 155 330 510 470 840
LUM296LA395 UV395 155 330 535 715 865
LUM296LA405 UV405 125 305 460 635 815
LUM296LA420 420-Violet 155 305 460 610 765
LUM296LA445 445-Indigo 255 510 765 995 1225
LUM296LA470 470-Blue 230 485 715 915 1120
LUM296LA505 505-Cyan 180 330 460 585 690
LUM296LA527 527-Green 130 280 410 510 560
LUM296LA590 590-Amber 205 380 585 765 915
LUM296LA630 630-Red 155 280 435 585 740
LUM296LA660 660-Deep Red 205 355 535 715 865
LUM296LA730 IR730 180 330 485 635 790
LUM296LAWHT White 255 510 765 1020 1530


96-Well LED Arrays with Lens Mat and Solid Base

Radiant Flux Values per STAGE | Irradiance Values per STAGE
Example (typical values*)
Stage 1 Radiant Flux Stage 2 Radiant Flux Stage 3 Radiant Flux Stage 4 Radiant Flux Stage 5 Radiant Flux
Catalog No. Wavelength Per well (mW) Total (W) Per well (mW) Total (W) Per well (mW) Total (W) Per well (mW) Total (W) Per well (mW) Total (W)
LUM296LS365 UV365 55 5.3 110 10.8 165 15.8 215 20.6 395 37.9
LUM296LS375 UV375 50 4.8 125 12.0 160 15.4 220 21.1 275 26.4
LUM296LS385 UV385 65 6.2 145 13.9 210 20.2 350 33.6 425 40.8
LUM296LS395 UV395 65 6.2 135 13.0 250 24.0 330 31.7 510 49.0
LUM296LS405 UV405 70 6.7 145 13.9 200 19.2 285 27.4 435 41.8
LUM296LA420 420-Violet 60 5.8 120 11.5 180 17.3 235 22.6 340 32.6
LUM296LS445 445-Indigo 100 9.6 195 18.7 285 27.4 370 35.5 515 49.4
LUM296LS470 470-Blue 95 9.1 190 18.2 275 26.4 350 33.6 500 48.0
LUM296LS505 505-Cyan 60 5.8 115 11.0 165 15.8 210 20.2 290 27.8
LUM296LS527 527-Green 55 5.3 100 9.6 140 13.4 175 16.8 215 20.6
LUM296LS590 590-Amber 75 7.2 145 13.9 210 20.2 295 28.3 380 36.5
LUM296LS630 630-Red 55 5.3 115 11.0 175 16.8 230 22.1 330 31.7
LUM296LS660 660-Deep Red 70 6.7 140 13.4 205 19.7 275 26.4 400 38.4
LUM296LS730 IR730 65 6.2 125 12.0 185 17.8 245 23.5 365 35.0
LUM296LSWHT White 70 6.7 140 13.4 210 20.2 275 26.4 400 38.4


96-Well LED Arrays with Lens Mat and Solid Base

Radiant Flux Values per STAGE | Irradiance Values per STAGE
Example (typical values*)
Irradiance at Surface of Each Lens Mat Tip
Stage 1 Stage 2 Stage 3 Stage 4 Stage 5
Catalog No. Wavelength (mW/cm2) (mW/cm2) (mW/cm2) (mW/cm2) (mW/cm2)
LUM296LS365 UV365 280 560 840 1095 2010
LUM296LS375 UV375 255 635 815 1120 1400
LUM296LS385 UV385 330 740 1070 1785 2165
LUM296LS395 UV395 330 690 1275 1680 2595
LUM296LS405 UV405 355 740 1020 1450 2215
LUM296LS420 420-Violet 305 610 915 1195 1730
LUM296LS445 445-Indigo 510 995 1455 1885 2625
LUM296LS470 470-Blue 485 970 1400 1785 2545
LUM296LS505 505-Cyan 305 585 840 1070 1475
LUM296LS527 527-Green 280 510 715 890 1095
LUM296LS590 590-Amber 380 740 1070 1500 1935
LUM296LS630 630-Red 280 585 890 1170 1680
LUM296LS660 660-Deep Red 355 715 1045 1400 2035
LUM296LS730 IR730 330 635 940 1250 1860
LUM296LSWHT White 355 715 1070 1400 2035

*For reference only. Typical values subject to change.

Each Lumidox® II Array comes with it's own calibration document





Wave Typical Spectral Characterization
UV Wavelengths
Expand
Visible Wavelengths
Expand
Broad Spectrum Wavelengths
Expand
Infrared Wavelengths
Expand

Typical Spectral Characterization
UV Wavelengths
Expand
Visible Wavelengths
Expand
Broad Spectrum Wavelengths
Expand
Infrared Wavelengths
Expand
UV Wavelengths



Typical Spectral Characterization
UV Wavelengths
Expand
Visible Wavelengths
Expand
Broad Spectrum Wavelengths
Expand
Infrared Wavelengths
Expand
Visible Wavelengths



Typical Spectral Characterization
UV Wavelengths
Expand
Visible Wavelengths
Expand
Broad Spectrum Wavelengths
Expand
Infrared Wavelengths
Expand
Broad Spectrum Wavelengths
Broad Spectrum Wavelengths


Wave
Typical Spectral Characterization
UV Wavelengths
Expand
Visible Wavelengths
Expand
Broad Spectrum Wavelengths
Expand
Infrared Wavelengths
Expand
Infrared Wavelengths
Infrared Wavelengths


Lumidox® II Controller

Lumidox II Controllers are manufactured in-house. Optical power levels are provided in easy to read, easy to calculate, whole numbers. Simply scroll through the menu to...

48-Position LED Arrays for TCR

Lens Mat Active with Patent BLUE

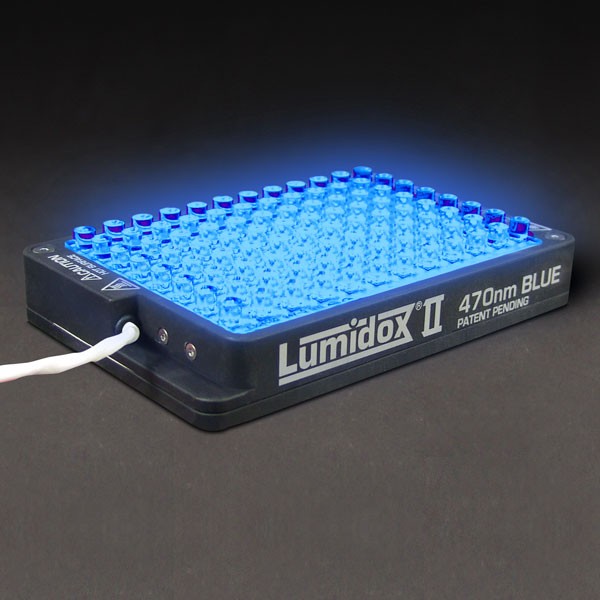

96-Position, Single Wavelength LED Arrays

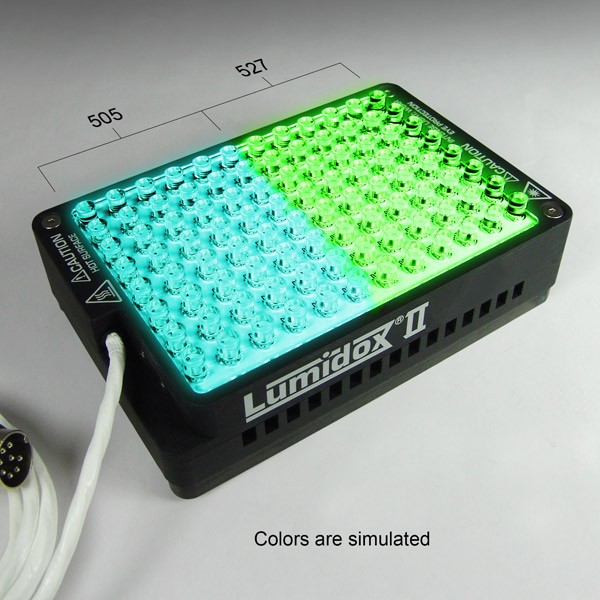

96-Position Discovery LED Arrays

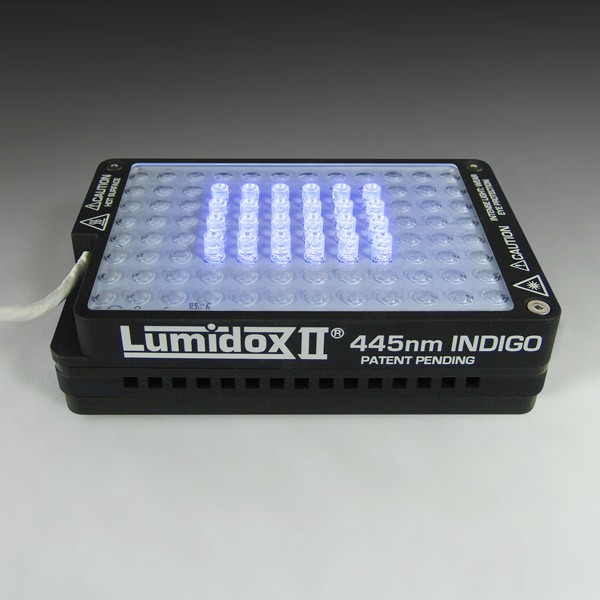

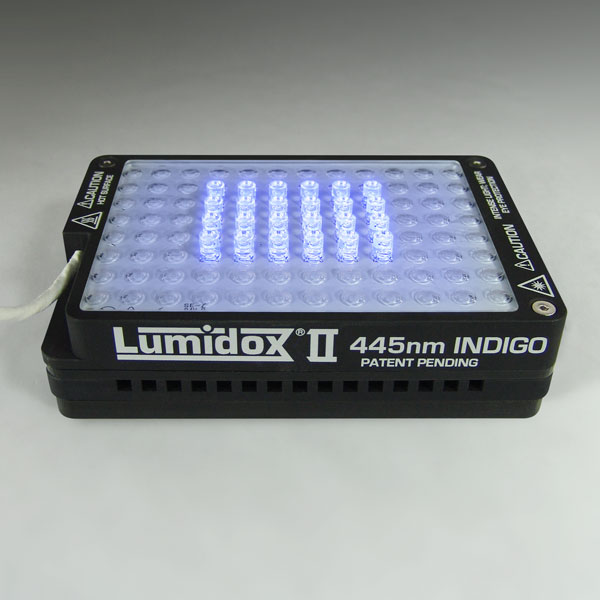

24-Position, 18mm Spacing LED Arrays
