Sample Filtration

Vacuum Manifold for SPE Sample Filtration


Units/Pkg: Each

SKU: 96844

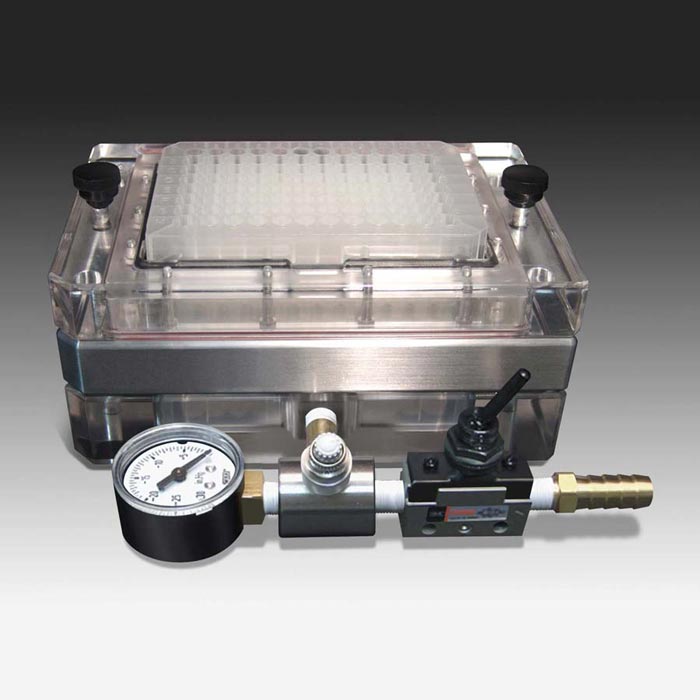

Vacuum Manifold Filtration System for SPE Sample Preparation

• Sturdy, clear acrylic construction
• Adjustable vacuum control
• Easy access to filtrate
• Compatible with all standard filter bottom microplates
• Collect into any storage plate
• Compatible with robotic handling

The Advantage™ Vacuum Manifold Filtration System allows you to collect into any storage plate (including low volume collection plates) and is compatible with robotic handling systems. It uses an integral flat gasket between the collection plate and the filtration plate which stays totally secure within the system. A spacer is supplied for use with low volume collection plates. The Vacuum Manifold is constructed of tough acrylic for optimum performance and visual accessibility. The vacuum control system allows you to start and stop the vacuum via a simple toggle switch. A convenient needle valve provides the ability to adjust the pressure as needed (located to the left of the regulator). Simply turn the needle valve clockwise to increase the pressure and counter clockwise to reduce pressure.

Outside dimensions:
• Length: 8-1/2″
• Width: 7-1/4″
• Height: 3-3/4″



Download Instructions Sheet
Download: Vacuum Manifold Operating Instructions
