Reactors and Accessories

Temperature Transfer Cover for Gen II, 24-Well, 18mm Spacing Reactors for 15mm OD Vials

$238.00

Units/Pkg: Each

SKU: 249913
Questions and Requests

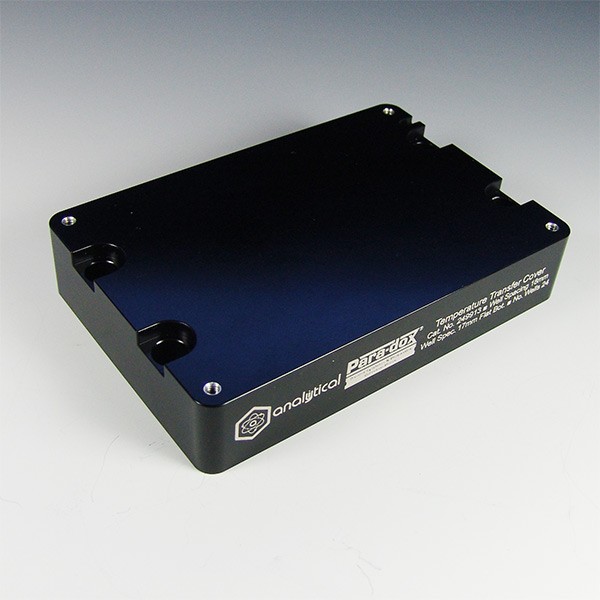

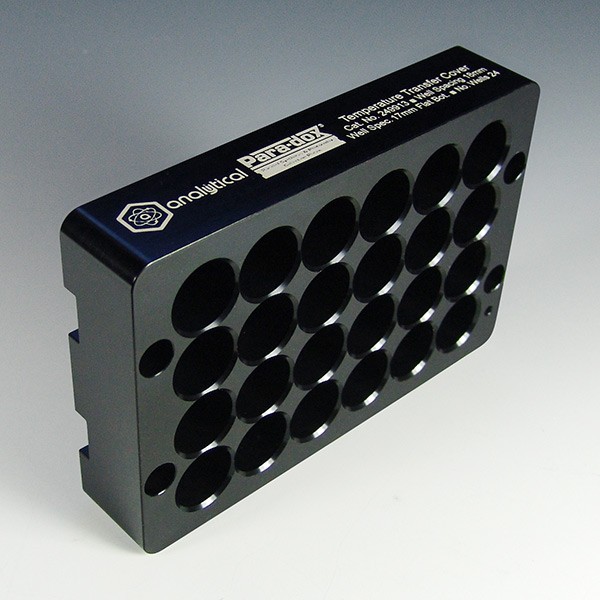

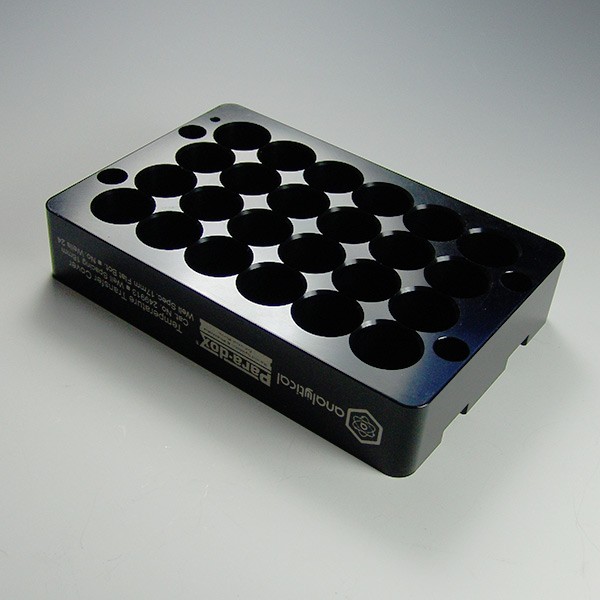

Temperature Transfer Cover for Gen II, 24-Well, 18mm Spacing Reactors for 15mm OD Vials

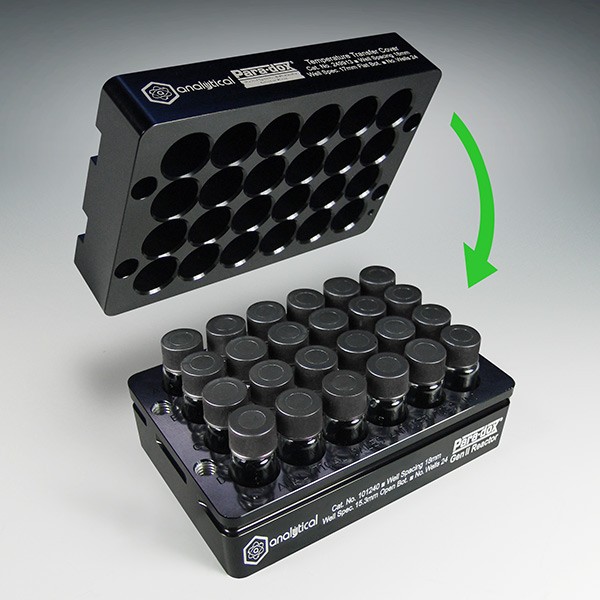

When using 15mm OD, 1 Dram vials in Gen II 24-well reactor blocks, this cover is perfect for those who prefer to cap their vials instead of sealing them with the standard aluminum cover, rubber mat and PFA film that come with the block assembly. When used in conjunction with a Thermal Transfer Deck (TTD) and external liquid chiller, the cover helps control excessive heat generated by a Lumidox II LED array. Its 17mm diameter, 20.5mm deep wells ensure the highest aluminum-to-aluminum ratio for maximum heat dispersal.

The vials in the reactor block provide the alignment for the cover, but for extra stability users can secure the cover with four (4) bolts. The cover can also be flipped over and used as a reactor in itself or vial tray.

Units:

Each
